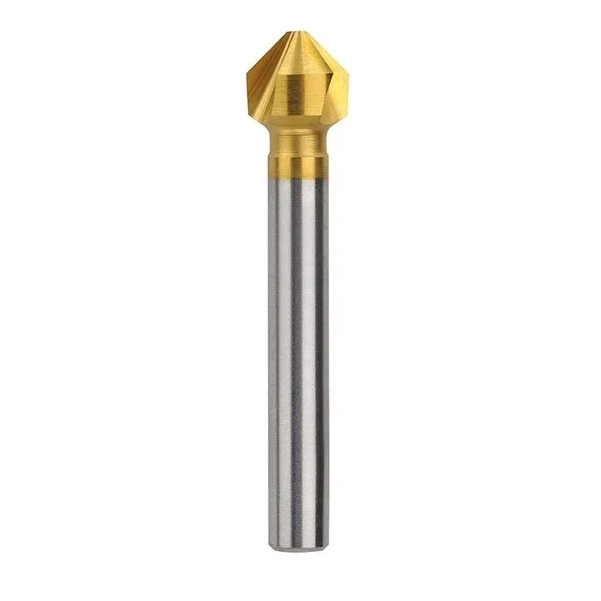

Bordo 3853-10 HSS TiN-Coated Triple Flute 10.0mm Countersink

Features:

• Triple flute countersinks are ideal for countersinking and deburring in a wide range of materials including ferrous and non-ferrous metals.
• The three fluted countersink is self centering with wide flutes and is used to provide a heavy chamfer in the entrance to a drilled hole.
• This may be required to allow the correct seating for a countersunk head screw or to provide the lead in for a second machining operation such as tapping.
• Use on medium to hard materials.
• Resharpenable.
• M35 Cobalt High Speed Steel offers increased wear and heat resistance in alloy steels, stainless steels and other abrasive or difficult materials.
• This increases tool life in all production applications.
• Titanium Nitride (TiN) Coated Countersinks have a very hard gold coloured surface finish.
• This coating is only a few microns thick and is achieved by Physical Vapour Deposition (PVD).
• This treatment results in reduced friction, greater heat dissipation and reduced cold welding – which means higher speed and feed rates with greatly increased tool life.
• As with all surface coated tools, performance will deteriorate after resharpening.

Specifications:

• Capacity MIN – MAX (mm): 2.2 – 10.0
• Diameter (mm): 10
• Overall Length (mm): 50
• Shank (mm): 6
